Custom CNC Turning Services
Reliable high quality precision CNC turning service in China. Competitive price and fast delivery.
- Over 80 Certified Materials
- ±0.05mm Tight Tolerance
- Custom Finishes
- Lead times from 7 days
- Customer data security

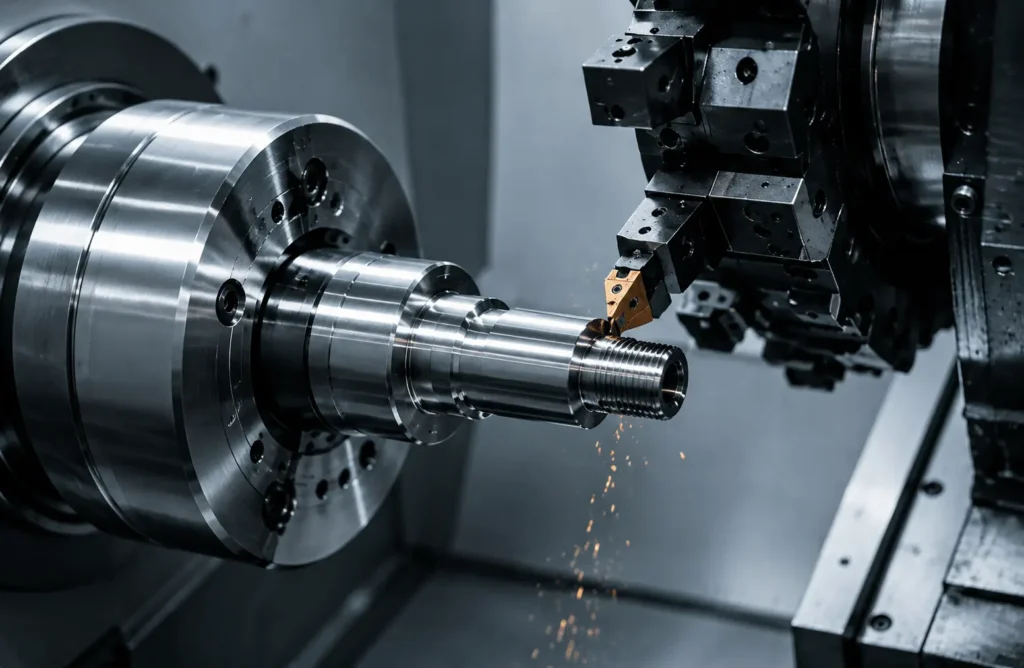

Precision CNC Turning Services From China
Are you looking for reliable suppliers of CNC Turned Parts with fast delivery?
YD Prototype is a leading provider of high quality CNC machining solutions specializing in precision turned components. Our experienced engineers, designers and procurement professionals ensure timely and cost-effective services tailored to your specific needs.
With advanced CNC turning centers and a wide range of finishing options, we are your trusted partner for everything from prototypes to full production runs.

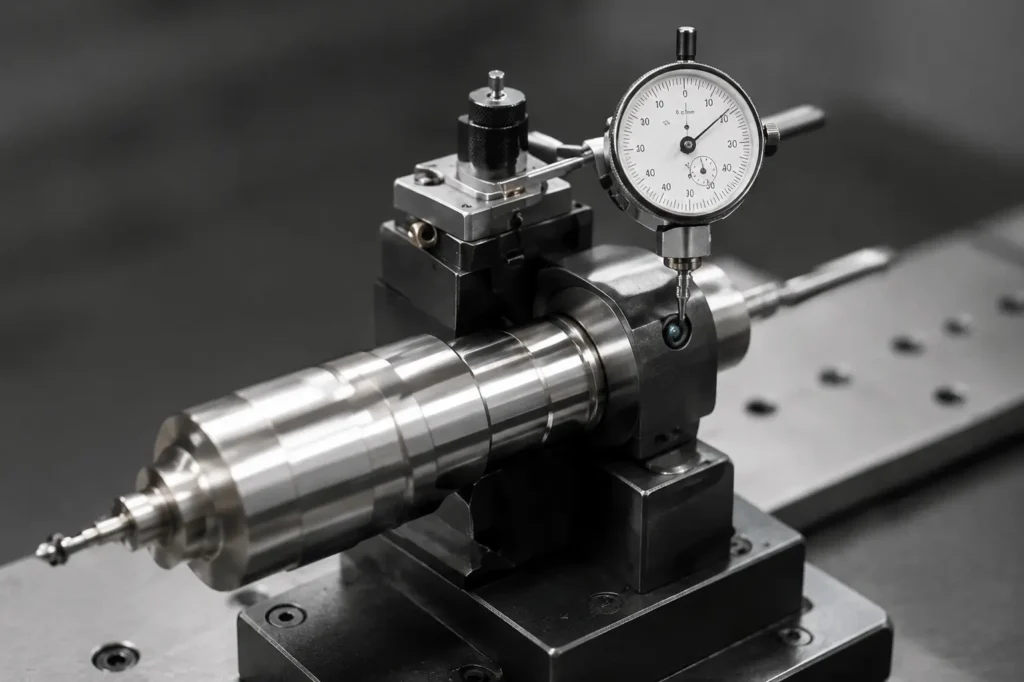

Why Order CNC Turned Parts From Us
Our Maximum Capabilities for CNC Turning
Part size limitations | Metric units | Imperial units |
|---|---|---|
Maximum part diameter | 508 mm | 20 inch |
Maximum part length | 1066.8 mm | 42 inch |
Maximum swing over the carriage | 355.6 mm | 14 inch |
Maximum spindle through-hole | 50.8 mm | 2 inch |
CNC Turning - General Tolerances
Our ISO 9001 certified company produces precision components with the highest level of accuracy, from intricate medical and aerospace designs to complex industrial parts. We use CNC lathes for complex machining projects requiring tight tolerance specifications down to ±0.005″ – as close as a few thousandths of an inch! Our standards for metals follow ISO 2768-m, while plastics meet the requirements of ISO 2768-c.
Type | Tolerance |
|---|---|
Linear Dimension | +/- 0.025 mm +/- 0.001 inch |
Hole Diameters (not reamed) | +/- 0.025 mm +/- 0.001 inch |
Shaft Diameters | +/- 0.025 mm +/- 0.001 inch |
Part Size Limit | 950 * 550 * 480 mm 37.0 * 21.5 * 18.5 inch |
Design Guidelines for CNC Turning
Our CNC machining specialists have carefully compiled a list of ideal properties for producing precision components. The table shows the most effective features and also suggests technical constraints to be aware of during production.
Feature | Recommended Size | Feasible Size |
|---|---|---|
Min. Feature Size | Ø 2.5 mm | Ø 0.5 mm |
Internal Edges | R 8 mm | R 0.25 mm |
Minimum Wall Thickness | 0.8 mm (for metals) 1.5 mm (for plastics) | 0.5 mm (for metals) 1.0 mm (for plastics) |
Holes | Diameter:standard drill bit sizes Depth: 4 x diameter | Diameter: Ø 0.5 mm Depth: 10 x diameter |
Threads | Size: M6 or larger Length: 3 x diameter | Size: M2 |
Materials for CNC Machining Parts
YD provides a comprehensive range of materials for custom CNC machining, plastics and metals, including but not limited to:
CNC Metals
Aluminum:The combination of aluminium’s strength-to-weight ratio, economy and recyclability has resulted in its utilisation in a diverse range of industries across the globe.
Alloys: 6061-T6, 7075-T6, 5052, 6060, 6082, 5005, 5083, 2017
The available finish options are as follows: anodised, II, III, III + PTFE type anodised, media blasted, nickel plated, powder coated, and roller polished.
Learn More:
Stainless steel:The Versatile, durable alloy primarily composed of iron and carbon.
Alloys:SS303, Stainless Steel 304/304L, Stainless Steel 316/316L, Stainless Steel 17-4, Stainless Steel 416, etc.
TThe item has undergone a series of processes, including machining, bead blasting, polishing, decorative chrome plating, powder coating, nickel plating, gold plating, and silver plating.
Learn More:
Alloy Steel:Alloy steels are a combination of elements, including manganese, nickel and chromium, which serve to enhance the strength, hardness, corrosion resistance and durability of the material for specific applications.
Alloys: AISI 1215, AISI 4140, AISI 4340, AISI 8620, AISI 4130
The processes of polishing, plating, painting and powder coating, among others, are employed in this context.
Learn More:
Tool Steel:Designed for the manufacture of cutting tools, dies and moulds, it is a high hardness, wear resistant alloy.
Alloys: A2 Tool Steel, D2 Tool Steel, O1 Tool Steel, S7 Tool Steel, M2 Tool Steel
The processes include bead/sand blasting, polishing, plating, painting, powder coating, heat treatment, and so forth.
Learn More:
Brass:Brass is an alloy of copper and zinc, especially metal material with more than 20% zinc content, which is the most commonly used metal material in cnc machining.
Alloys: C360, C260
Nickel Plating, Bead Blasted, Gold Plating, Silver Plating.
Learn More:
Copper: Copper is a malleable metal with excellent thermal and electrical conductivity, rendering it a material of significant importance to numerous industrial sectors.
Alloys: C10100, C11000, C12200, C14500, C17200
Finishing Option: Plating, Polishing
Learn More:
Aluminum:A strong, lightweight metal with excellent corrosion resistance, widely used in aerospace, medical implants, and high-performance applications.
Alloys: Ti-6Al-4V, Ti-6Al-2Sn-4Zr-2Mo, Ti-3Al-2.5V
The final stage of the process is the finishing option. The finishing options include polishing, anodising, sandblasting, chemical etching, laser engraving, and so forth.
Learn More:
Magnesium:A lightweight, strong metal with excellent machinability and high thermal conductivity, often used in aerospace, automotive, and electronics applications.
Alloys: AZ31B, AZ91D, We43, AM60B, ZK60A, QE22
Finishing options include blasting, anodising, chromate conversion coating, passivation, powder coating and electroplating, among others.
Learn More:
CNC Plastics
POM (Delrin/Acetal): A strong, low-friction thermoplastic with excellent dimensional stability and wear resistance, widely used in precision engineering applications like gears and bearings.
Color: White, Black, Brown
Grade: POM, UV-stabilised POM, food-grade POM.
Learn More:
PMMA:A transparent, lightweight plastic with excellent optical clarity and weather resistance, often used as a glass substitute in windows, displays, and lighting fixtures.
Color: transparent.
Grade: PMMA, UV-stabilized, Heat-resistant.
Learn More:
PEEK:A high-performance thermoplastic known for its exceptional strength, heat resistance, and chemical stability, used in demanding applications like aerospace, medical devices, and industrial components.
Colour: Beige without transparency
Grade: Unfilled PEEK, 30% glass fibre reinforced PEEK, 30% carbon fibre reinforced PEEK, bearing grade PEEK.
Learn More:
ABS:A tough, impact-resistant thermoplastic known for its strength, versatility, and ease of molding, commonly used in automotive parts, consumer goods, and 3D printing.
Colour: ABS is naturally opaque and is available in a range of colours including black, white and grey.
Grade: General purpose ABS, Flame retardant ABS, High impact ABS, Heat resistant ABS.
Learn More:
Nylon (PA): A versatile, durable thermoplastic known for its strength, wear resistance, and flexibility, commonly used in textiles, automotive parts, and industrial components.
Colour: Nylon is often used in its natural off-white or slightly yellowish colour.
Grade: Nylon 6, Nylon 6/6, Nylon 11, Nylon 12.
Learn More:
PTFE (Teflon): A highly versatile fluoropolymer known for its exceptional chemical resistance, low friction, and non-stick properties, widely used in coatings, gaskets, and electrical insulation.
Color: PTFE color is typically white or cream.
Learn More:
PVC (Polyvinyl Chloride): A durable, versatile plastic known for its chemical resistance and low cost, widely used in construction, piping, and electrical insulation.
Color: clear or opaque
Grade: UPVC, PPVC, CPVC
Learn More:
PEI (Ultem): A high-performance thermoplastic known for its exceptional strength, flame resistance, and thermal stability, commonly used in aerospace, medical, and electronic applications.
Color: Amber or brownish color
Grade: Unfilled PEI, Glass-Filled PEI, Carbon-Filled PEI, Ultem PEI
Learn More:
Polycarbonate is extremely durable and has high impact resistance, along with excellent clarity, used in bulletproof glass and protective gear.
PC Black
PC Clear
PC White
PC Yellowish White
PC+GF30 Black
Learn More:
Surface Finishes for CNC Machined Parts
In addition to our custom CNC machining services, we offer complete surface finishing solutions for precision machined parts. If you need a custom surface finishing solution that is not listed, please contact us and we would be honored to customize our services for you.
| Name | Description | ||
|---|---|---|---|
 | As machined | The machined aluminum parts are left with visible tool marks and potentially sharp edges and burrs, which can be removed upon request. | |
 | Bead Blasted | Give the machined parts a smooth and uniform matte surface finish, thereby removing tool marks. | |
 | Polishing | Creating a smooth and shiny surface by manually polishing in multiple directions or by applying a chemical polish treatment. | |
 | Anodizing | Type II (Anodizing color or clear) or Type III (Anodizing hard coat) Anodizing does not cover tool marks unless bead blasted beforehand. | |
 | Chromate Conversion Coating | Increase the part’s corrosion resistance while retaining its conductivity. RoHS compliant. | |
 | Decorative Chrome Plating | Enhance aesthetics and durability of the cnc aluminum components. | |
 | Powder Coat | Applying powdered paint to the components and then baking it in an oven, which results in a stronger, more wear- and corrosion-resistant layer that is more durable than traditional painting methods. | |

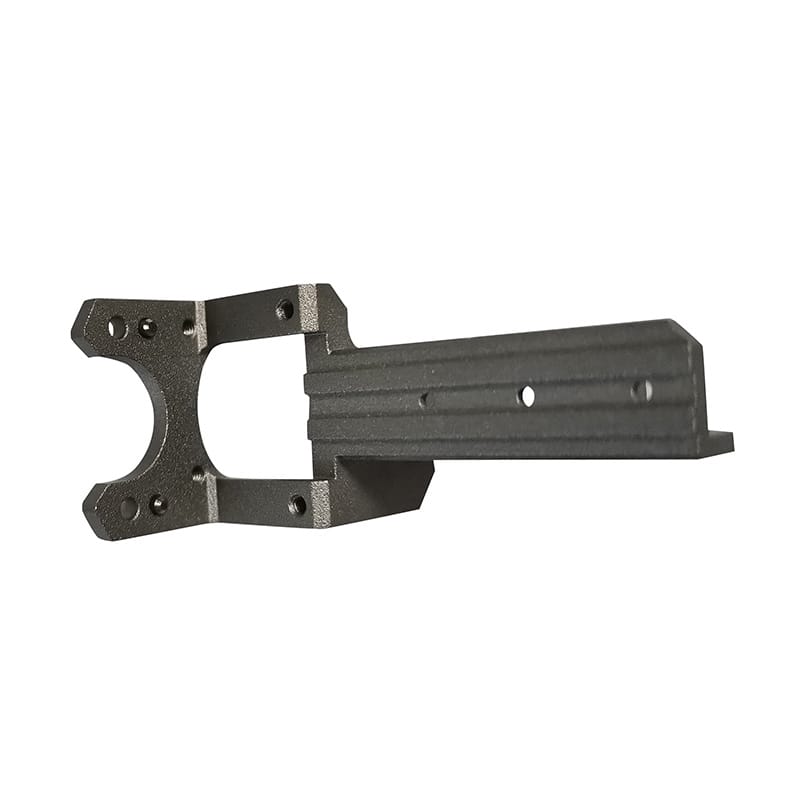

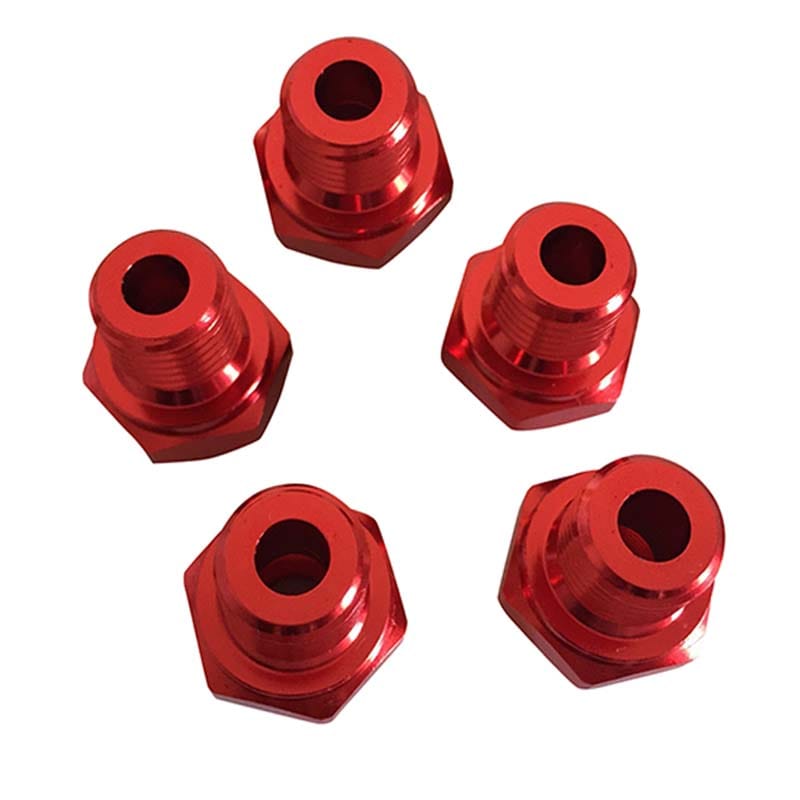

CNC Turning and Lathe Parts Showroom
Applications of CNC Turning
Automotive
In the automotive industry, precision cylindrical parts such as engine crankshafts, drive shafts and brake rotors are typically produced using CNC turning.
Rapid Prototyping
CNC is an excellent alternative for rapid prototyping due to its wide range of materials, low unit cost and fast production capabilities.
Aerospace
CNC turning is a key aero machining technique used to produce precision cylindrical components such as turbine components, hydraulic components, and chassis shafts.
Industrial machinery
CNC turning is used in the industrial machine tool industry for the manufacture of highly accurate cylindrical components including gear wheels, clutches and shafts.
Medical equipment
CNC turning machines are used in the medical industries for the production of precision cylindrical components for various medical products such as surgical instruments, implants and prostheses.
Defense Industry
CNC turning is widely used in defense to produce high-precision cylindrical components like artillery shells, gun barrels and missile casings.
FAQs For CNC Turning
What's CNC turning?
CNC Turning is a precision machining process where a computer-controlled lathe rotates the workpiece while a stationary cutting tool removes material to shape the part. It is primarily used to create cylindrical or symmetrical parts, such as shafts, bushings, and threads. CNC turning is ideal for producing high-precision components with tight tolerances, often in industries like automotive, aerospace, and electronics.
Is CNC lathe and CNC turning same?
Yes, CNC lathe and CNC turning refer to the same process, but from different perspectives:
CNC Lathe: Refers to the machine itself, which rotates the workpiece while the cutting tool removes material. A CNC lathe is the equipment used for CNC turning.
CNC Turning: Refers to the machining process that occurs on a CNC lathe, where the rotating workpiece is shaped by the cutting tool.
In short, a CNC lathe is the machine, and CNC turning is the process it performs.
What are the disadvantages of CNC turning?
What is the difference between CNC turning and CNC milling?
What is the difference between rough turning and finish turning?
The main difference between rough turning and finish turning lies in their purpose and precision:
- Rough Turning:
- Purpose: To quickly remove large amounts of material from the workpiece, shaping it close to the final dimensions.
- Precision: Less accurate, with a rough surface finish and larger tolerances.
- Cutting Depth: Deeper cuts with higher feed rates to maximize material removal.
- Finish Turning:
- Purpose: To achieve the final shape and smooth surface finish with high precision.
- Precision: Very accurate, with tight tolerances and a smooth surface finish.
- Cutting Depth: Shallow cuts with lower feed rates for finer detailing.
What parts can be made with CNC turning?
Plastics: CNC mills can also shape various plastic materials, including acrylic, PVC, polyethylene, and nylon, among others. These plastics are often used in the manufacture of medical devices, consumer products, and electronic components.
Composite materials: CNC mills can machine composites, which are a combination of materials such as carbon fiber, fiberglass, and Kevlar. These composites are often used in the aerospace, automotive, and sporting goods industries.
Ceramics: CNC mills can precisely shape and cut various types of ceramics, including alumina, zirconia, silicon carbide and silicon nitride. Due to the brittle nature of ceramics, the milling process requires special attention to factors such as cutting speed, tool selection and cooling to prevent cracking or chipping of the material.
Contact Us
If you require a product made from metal or plastic, please contact the YD sales team for a prompt quotation.
