Step turning is a basic CNC turning process that involves creating multiple diameters on a workpiece in a single setup. It is widely used in manufacturing to produce stepped shafts, threaded components and other precision parts. In this comprehensive guide, we’ll explore:
What step turning is.
The step turning process
Essential tools for step turning
– Applications in CNC turning
– advantages and challenges.
By the end, you will have a deep understanding of how step turning can enhance the efficiency and precision of CNC machining.
What Is Step Turning?

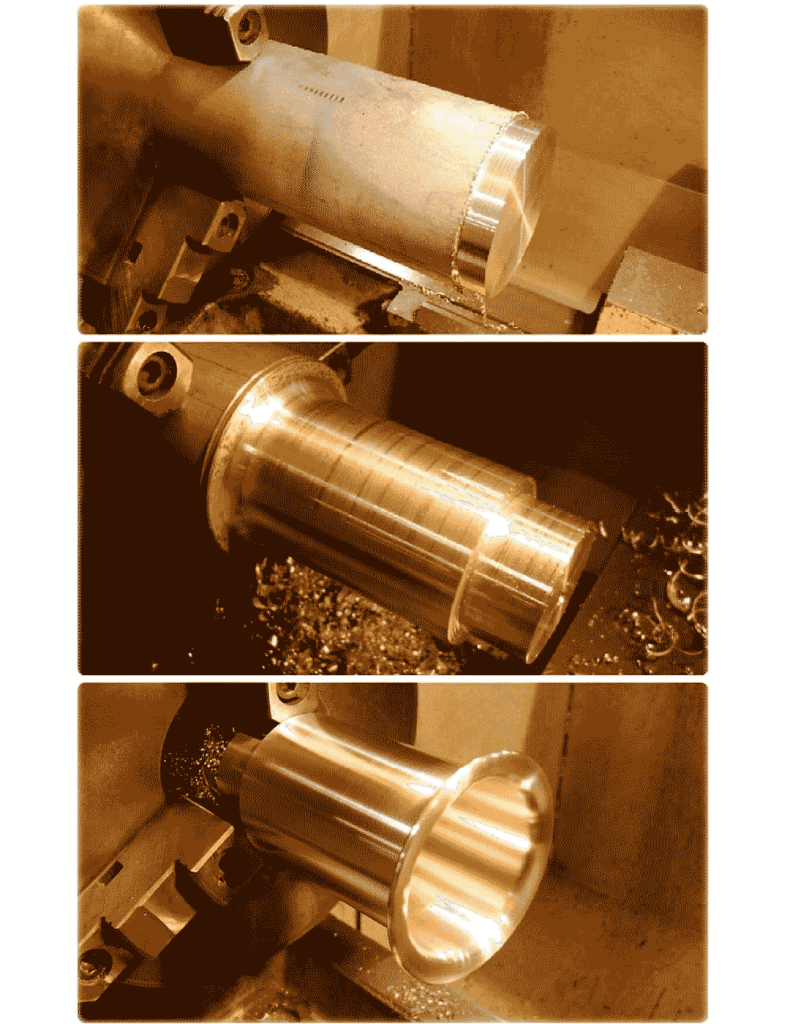

Step turning is a lathe operation where a workpiece is machined to have multiple diameters, creating a “stepped” profile. Unlike straight turning, which produces a uniform diameter, step turning allows for complex geometries in a single operation.
Key Characteristics:
- Multiple Diameters: Produces parts with varying thicknesses.
- Single Setup: Reduces machining time by avoiding multiple operations.
- Precision: Ensures tight tolerances for industrial applications.
The Step Turning Process
1. Workpiece Setup
- The raw material (usually a cylindrical bar) is clamped in a chuck or collet.
- Proper alignment ensures concentricity between steps.
2. Tool Selection
- Roughing Tools: Remove bulk material quickly.
- Finishing Tools: Achieve fine surface finishes.
- Grooving Tools (if needed): Create undercuts or grooves between steps.
3. CNC Programming
- G-code defines tool paths for each step.
- Parameters like feed rate, spindle speed, and depth of cut are optimized.
4. Machining Execution
- The lathe removes material sequentially, forming steps.
- Coolant is applied to prevent overheating and improve tool life.
5. Inspection & Finishing
- Measurements verify dimensional accuracy.
- Deburring or polishing may be applied for final quality.
Essential Tools for Step Turning
| Tool Type | Purpose | Example |
|---|---|---|
| Turning Tool | Cuts external diameters | Carbide insert tool |
| Grooving Tool | Creates recesses between steps | Parting-off blade |
| Boring Bar | Machines internal steps (if needed) | Micro boring bar |
| CNC Lathe | Executes programmed operations | Haas ST-20 |
Applications of Step Turning in CNC Machining
- Shaft Manufacturing
- Used in automotive and aerospace for drive shafts and transmission components.
- Threaded Fasteners
- Produces bolts, screws, and studs with varying diameters.
- Hydraulic Components
- Creates precision pistons and valve bodies.
- Medical Devices
- Machines surgical instruments and implantable parts.
Advantages of Step Turning
✅ Reduced Setup Time – Multiple features in one operation.
✅ High Precision – Maintains tight tolerances (±0.005mm).
✅ Material Efficiency – Minimizes waste compared to separate operations.
Challenges & Solutions
⚠ Tool Wear → Use high-quality carbide inserts and proper coolant.
⚠ Vibration in Thin Steps → Optimize cutting parameters and use steady rests.
Step turning is a versatile CNC machining process that improves productivity and precision. Manufacturers can optimise production for complex turned parts by understanding its workflow, tooling, and applications.
